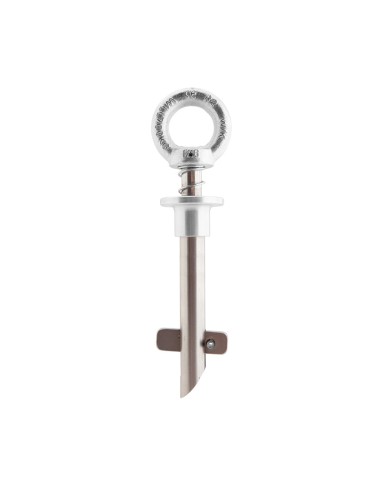

CLOSED ANCHOR WITH T-TYPE LOCK, LENGTH 240 MM EN795B
CLOSED ANCHOR WITH T-TYPE LOCK, LENGTH 240 MM EN795B

CLOSED ANCHOR WITH T-TYPE LOCK, LENGTH 240 MM EN795B

80148
Enduring safety.


· Permanent galvanised steel
· Static resistance 12 kN.
· Weight: 0.57 Kg.
· APPLICATIONS This type of structural anchors type A must be permanently fixed to a structure: vertical, horizontal and inclined surfaces in a specially prepared hole.
· PACKAGING 1 unit

Closed “T” type anchor of 240 mm in galvanised steel: permanent safety with 12 kN of resistance.
Robust design and optimised weight with great value for money for multiple surfaces.


Maximise safety at height with a closed anchor of robust design and galvanised steel construction. Its static resistance of 12 kN and optimised weight of 0.57 kg make it a reliable and efficient solution for permanent installations demanding durability and constant performance.
Technology and quality combine to offer a stable anchorage point on vertical, horizontal, and inclined surfaces, ideal in industrial maintenance, civil works, and energy environments. Excellent value for money to standardise your anchorage points without sacrificing safety.
Usage suggestions: plan the location to minimise the pendulum effect, make the hole with the diameter and depth specified by the manufacturer, check the tightening torque and combine with certified PPE and compatible connectors.
Enduring safety.

Use cases:
- Fixed anchor point on metal or concrete structures for maintenance work
- Installation on fixed ladders, walkways or platforms for connection of fall arrest systems
- Anchor on inclined roofs or façades for cleaning, inspection and repair tasks
Packaging unit
EN795B
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
