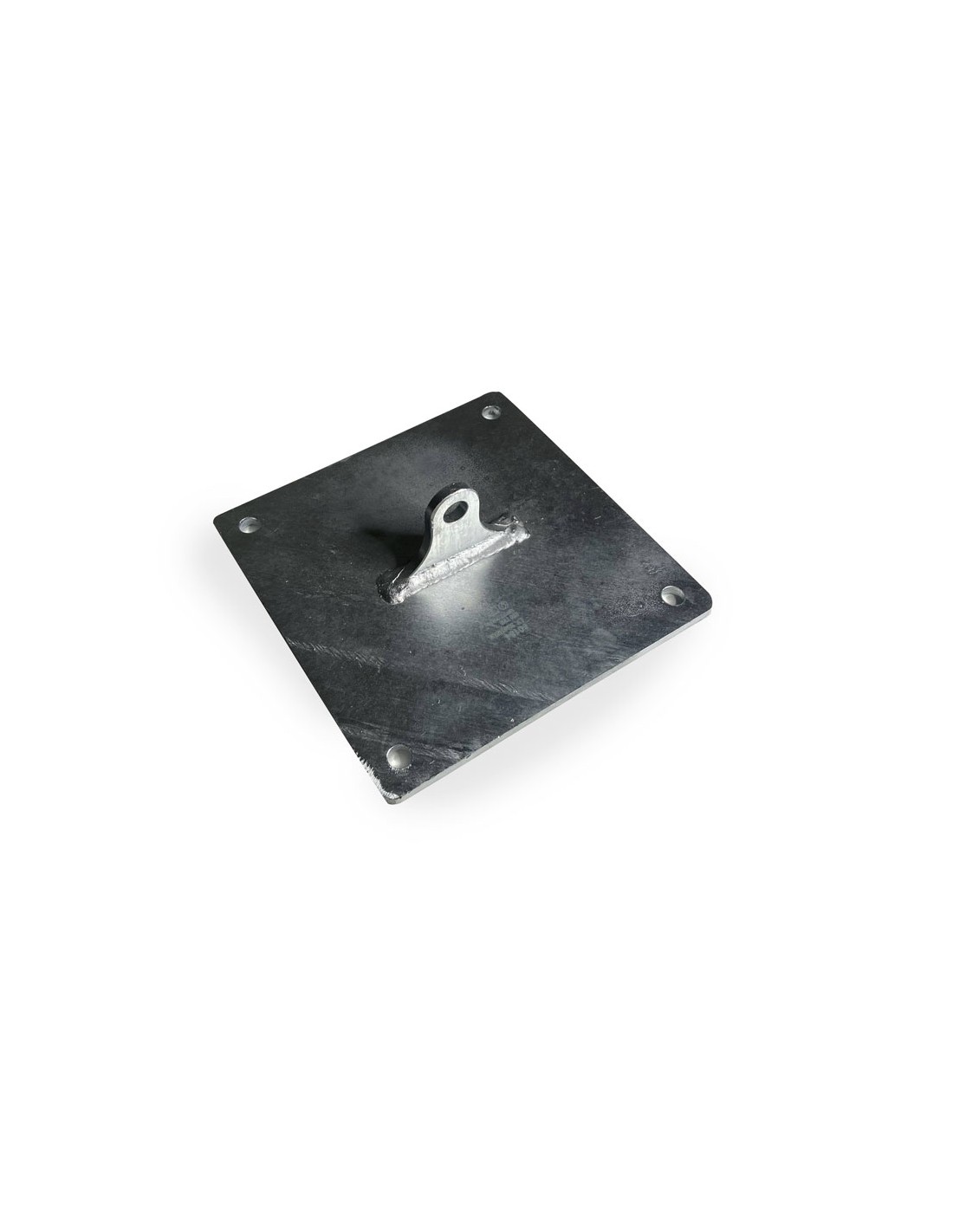

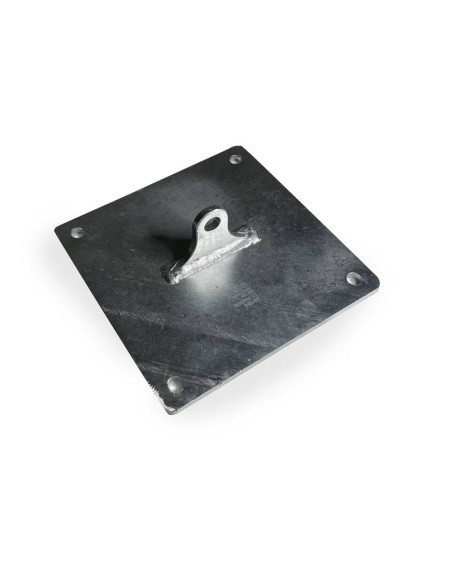

SQUARE ANCHOR FOR CONCRETE WITH WELDED RING
SQUARE ANCHOR FOR CONCRETE WITH WELDED RING

SQUARE ANCHOR FOR CONCRETE WITH WELDED RING

80184
Safety that rotates with you.

· Square anchor in S275JR steel, galvanised
· Installation measures: 200x200 mm and 16.2 mm.
· Reaches 30 kN of resistance.
· Load direction with 360° rotation.
· APPLICATIONS: designed to attach the ends of the fall protection device to a structure.
· EN795 Class A and C

Anchoring point for concrete in galvanised S275JR steel with a strength of 30 kN.
360° rotation and EN795 A and C certification for versatile and reliable safety.

Designed for demanding work at height, this square anchor offers the sturdiness of S275JR steel with galvanisation for maximum durability in outdoor and aggressive environments. The welded ring ensures a secure and stable fixation, while the 360° load rotation facilitates user mobility without twisting the system.
With a base of 200x200 mm and 16.2 mm holes, its installation is quick and precise on concrete, optimising mounting times and ensuring compatibility with certified fall protection devices. Complies with EN795 Class A and C, providing assurance and regulatory traceability.
Usage suggestions: position the point in structurally solid areas, verify torque and fastening elements, perform periodic inspections and combine with approved PPE and lifelines.
Safety that rotates with you.

Use cases:
- Anchoring point for lifelines and fall protection devices on concrete roofs.
- Industrial maintenance, air conditioning, and energy tasks at height.
- Temporary or permanent installations on edges, slabs and concrete beams.
Packaging unit
EN795A
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
