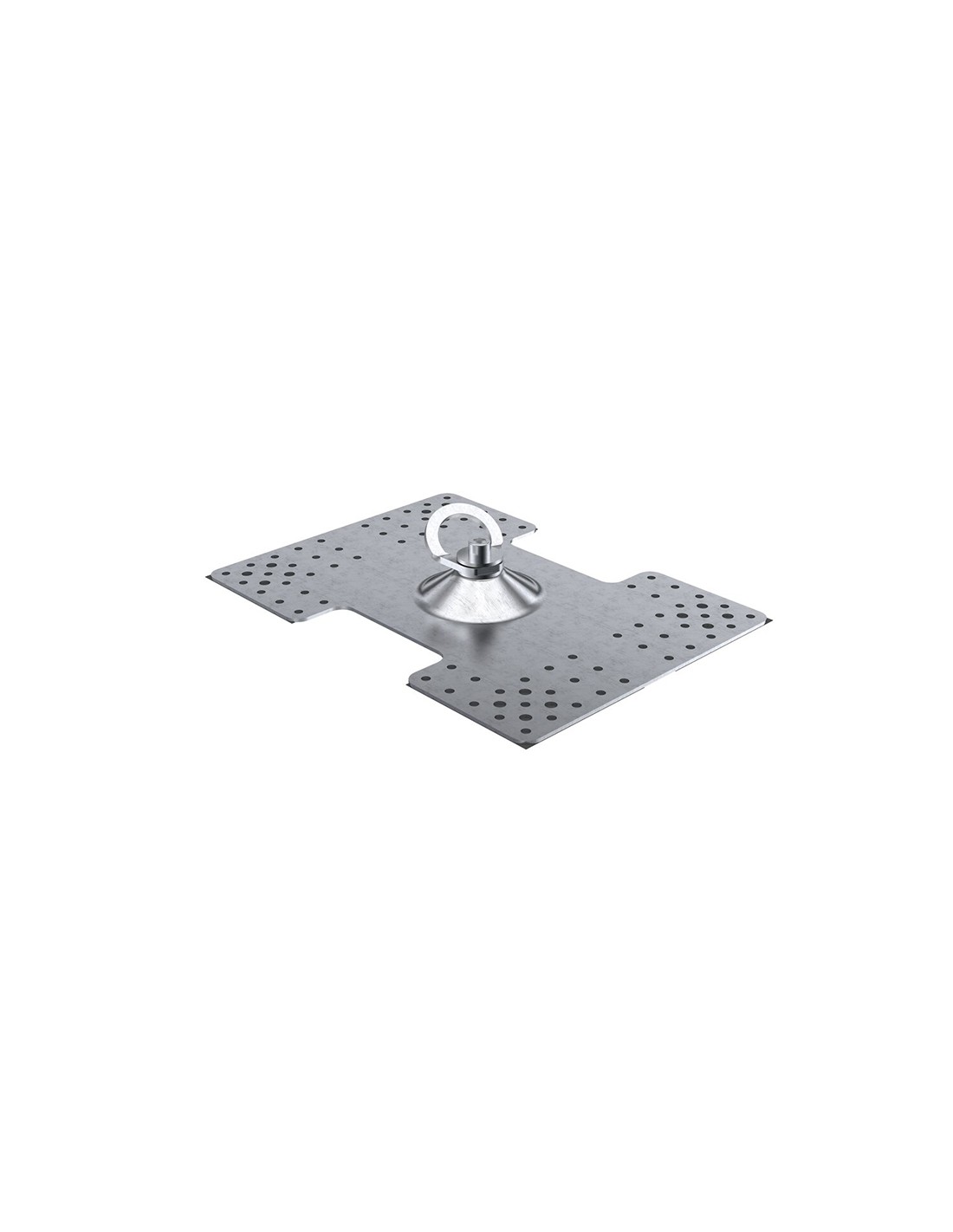

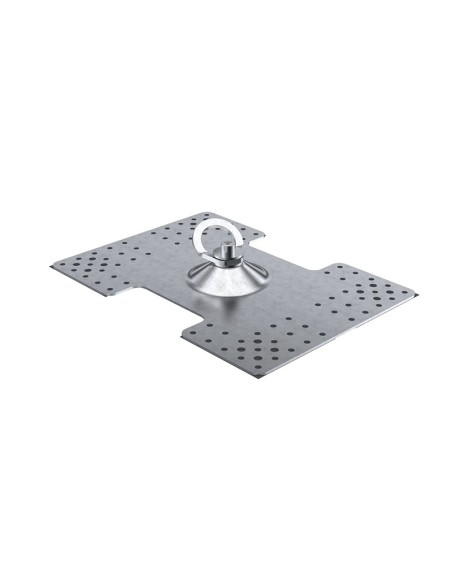

ANCHORAGE FOR SANDWICH SHEET +0.50mm WITH RIVETS AND HOOK
ANCHORAGE FOR SANDWICH SHEET +0.50mm WITH RIVETS AND HOOK

ANCHORAGE FOR SANDWICH SHEET +0.50mm WITH RIVETS AND HOOK

80188
Safety that rotates with you.

· Permanent, stainless steel.
· For sheets thicker than 0.5 mm.
· Achieves 30 kN resistance.
· 360º load rotation direction.
· APPLICATIONS: mounting on trapezoidal sheet. With higher static resistance.
· EN795; CEN/TS/16415

Permanent stainless steel anchorage for sandwich sheets >0.50 mm providing certified safety and durability on metal roofs.
Its 30 kN resistance and 360º load rotation maximise versatility and reduce unwanted strain in any direction.

Designed for demanding professionals, the anchorage Ref. 80188 offers a permanent connection point on sandwich sheets with a thickness =0.5 mm. Its stainless steel construction ensures high resistance to corrosion and reduced maintenance, while the 360º rotation capacity prevents twists in lines and connectors. Certified EN795 and CEN/TS 16415, it reaches 30 kN, offering confidence in work at heights. Installation with rivets is quick and reliable on trapezoidal sheet, optimising time and costs without sacrificing safety. Recommendations: check thickness and support, use suitable rivets and conduct regular inspections in accordance with regulations. Ideal for integrating into fall protection systems or as a single anchorage point on metal roofs. Safety that rotates with you.

Use cases:
- Anchorage point for maintenance work on trapezoidal sandwich sheet roofs (solar, air conditioning, skylights).
- Integration in lifelines or as standalone anchorage on metal roofs with a thickness =0.5 mm.
- Accesses and tasks on sandwich panel facades where load guidance with 360º rotation is required.
Packaging unit
CEN/TS 16415
OK
EN795
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
