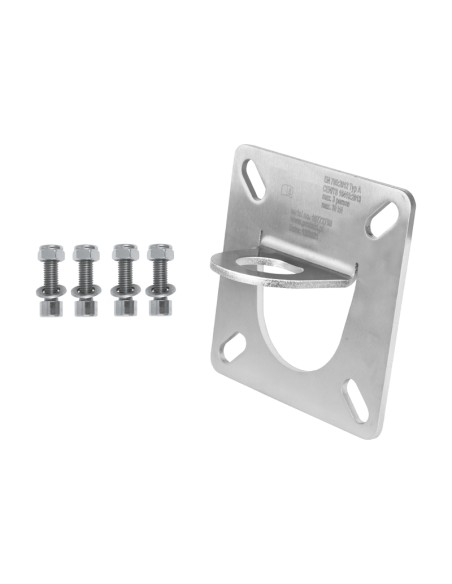

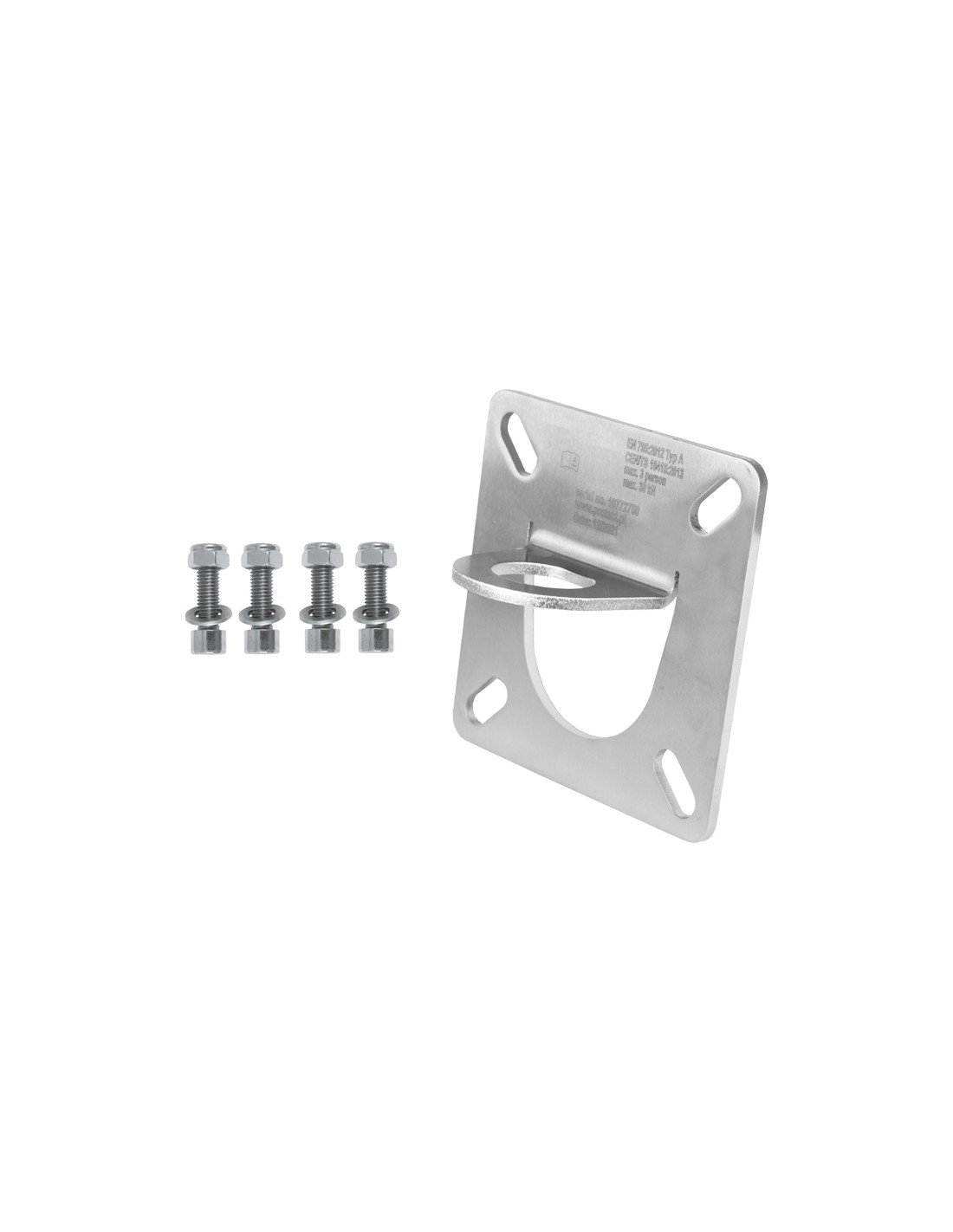

ANCHORAGE SET 3 pax for Steel Structures with Bolts
ANCHORAGE SET 3 pax for Steel Structures with Bolts

ANCHORAGE SET 3 pax for Steel Structures with Bolts

80165A
3 users, 30 kN, enduring safety.


· Permanent anchorage set type A
· Composed of 150x150 mm steel plate and bolts
· 4 stainless steel anchors for concrete.
· Designed for 3 users working simultaneously.
· Reaches 30 kN resistance.
· APPLICATIONS This type A anchors should be permanently fixed to a structure: vertical, horizontal and inclined surfaces, such as walls, columns, lintels, etc.
· EN 795

Permanent type A anchor with 150x150 mm plate and 4 stainless steel anchors, EN 795 certified, capable of withstanding up to 30 kN.
Differential: accommodates 3 simultaneous users with robust design and high quality, optimising safety and cost.


The ANCHORAGE SET 3 pax for Steel Structures with Bolts is the professional solution for high-altitude work requiring constant safety and proven performance. Its 150x150 mm steel plate and 4 stainless steel anchors ensure a permanent, reliable and durable fixation, withstanding up to 30 kN and complying with EN 795 standard. Designed to accommodate up to 3 simultaneous users, it optimises operation in industrial and maintenance environments, offering an excellent cost-value ratio.
Usage suggestions: install on vertical, horizontal or inclined surfaces (walls, columns, lintels) verifying the substrate's load-bearing capacity; installation should be performed by competent personnel following EN 795 and recommended torque settings; complement with certified fall protection PPE and establish a periodic inspection plan, especially in aggressive or marine environments.

Use cases:
- Maintenance of roofs and facades in industrial buildings and logistic facilities
- Anchorage points on columns, lintels and metal structures for installation and repair work
- Access and rescue in areas with fall risk in civil works and processing plants
Packaging unit
CEN/TS 16415
OK
EN795A
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
