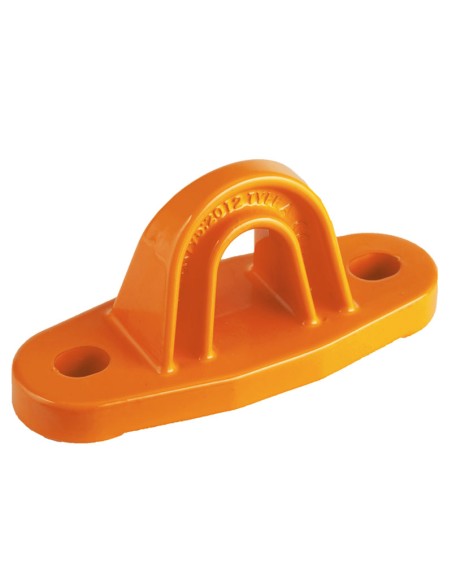

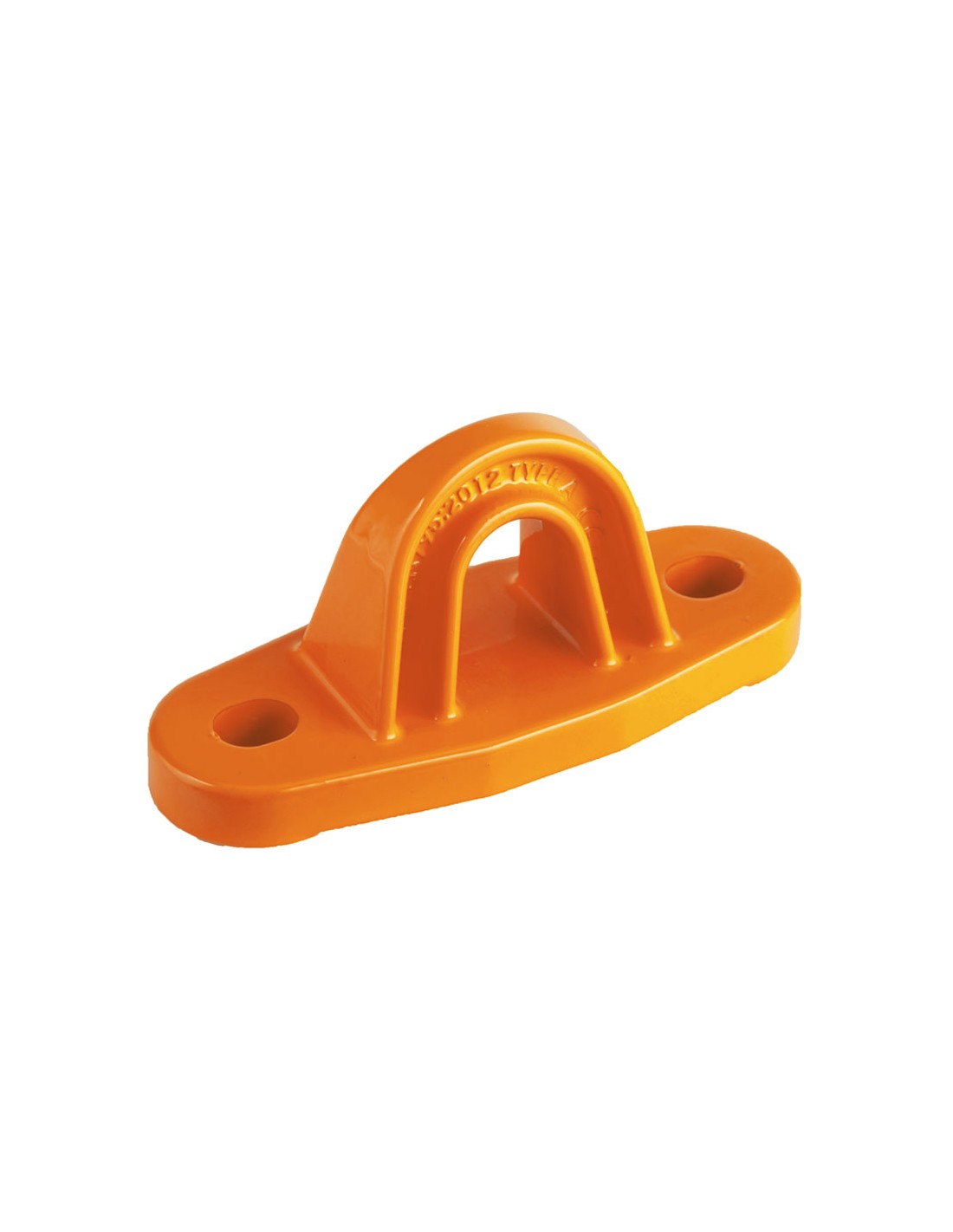

PERMANENT ANCHOR POINT 135x60x60 metric 12
PERMANENT ANCHOR POINT 135x60x60 metric 12

PERMANENT ANCHOR POINT 135x60x60 metric 12

80134
Permanent safety, total confidence.


· Permanent type A1 anchor point for structure, designed to connect a fall arrest system to a fixed construction.
· Can be installed vertically, horizontally, or on the ceiling.
· Connection to a steel base must be made using fasteners of minimum durability, such as M12-A2-70.
· For metric 12 fasteners, 12 Kn.

Permanent type A1 anchor for fall arrest systems, adaptable to vertical, horizontal and roof installations for maximum versatility. Compatibility with M12-A2-70 fasteners and performance of 12 Kn for robust safety and professional quality.


The PERMANENT ANCHOR POINT 135x60x60 metric 12 (Ref. 80134) is the secure and reliable solution for connecting fall arrest systems to fixed type A1 structures. Its design allows for vertical, horizontal, and roof mounting, optimizing installation and reducing onsite time. Manufactured to work with M12-A2-70 fasteners and with a performance of 12 Kn, it stands out for its quality and robustness in demanding environments. It offers an excellent quality-price ratio and wide compatibility with standard lifelines and connectors, ideal for industrial maintenance, construction, and energy sectors. Usage suggestions: install on certified steel bases, apply the recommended torque for M12, and perform regular inspections according to current regulations. Permanent safety, total confidence.

Use cases:
- Installation on roofs and ceilings for maintenance tasks at height.
- Fixation to vertical or horizontal metal structures in industrial warehouses.
- Anchor point on walkways and platforms for connecting lifelines or absorbers.
Packaging unit
EN795A
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
