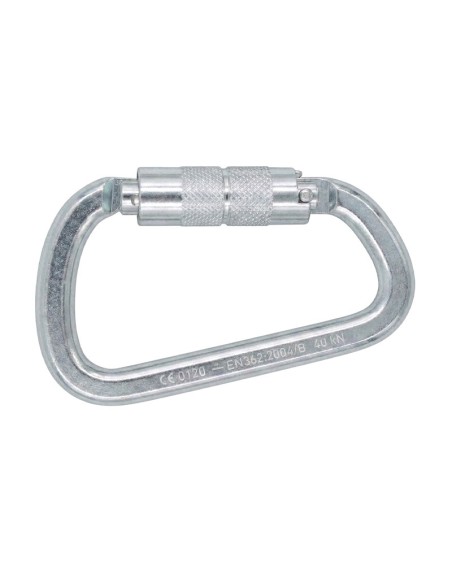

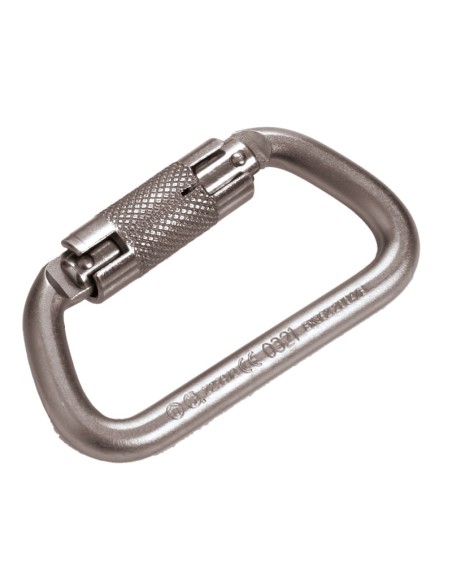

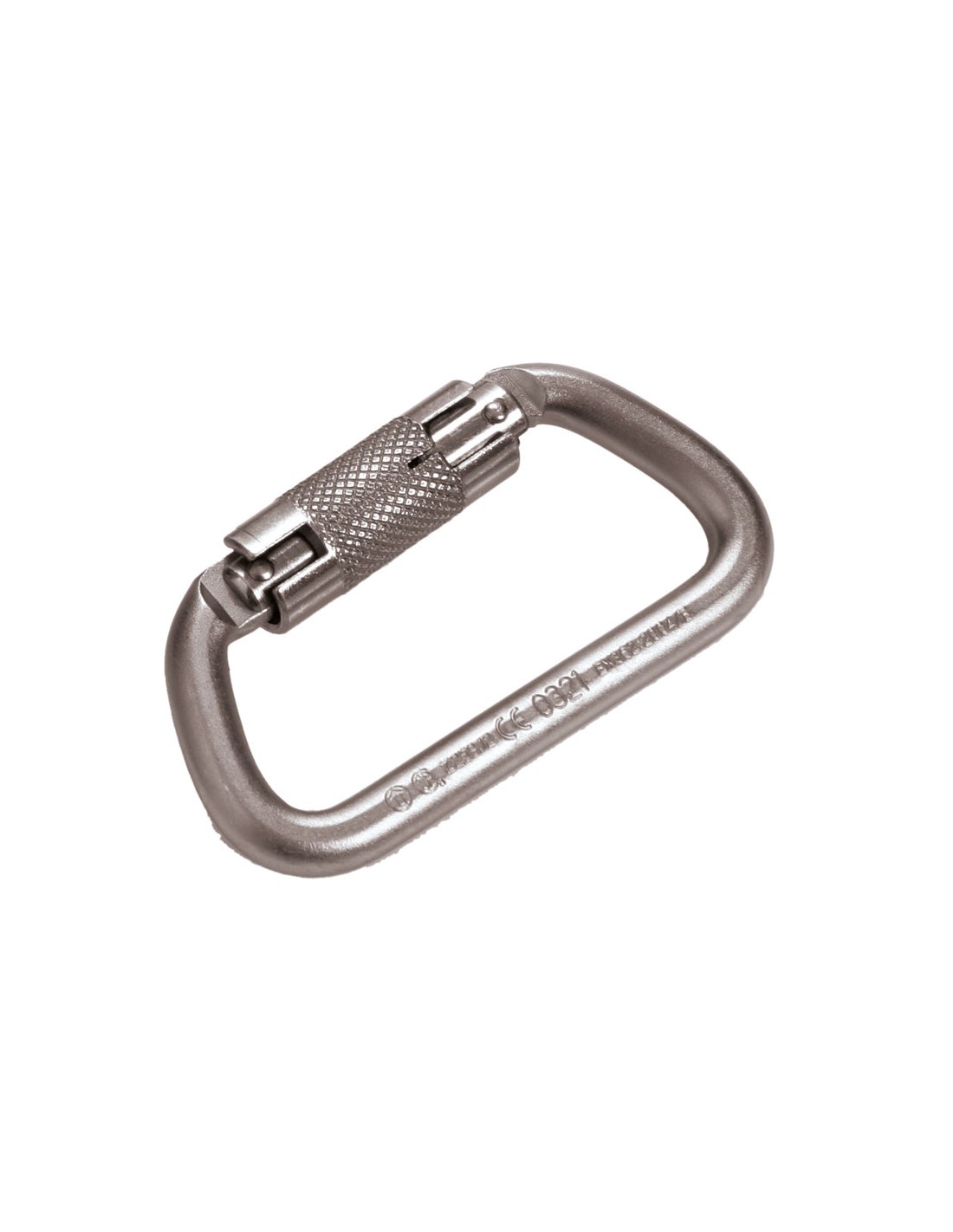

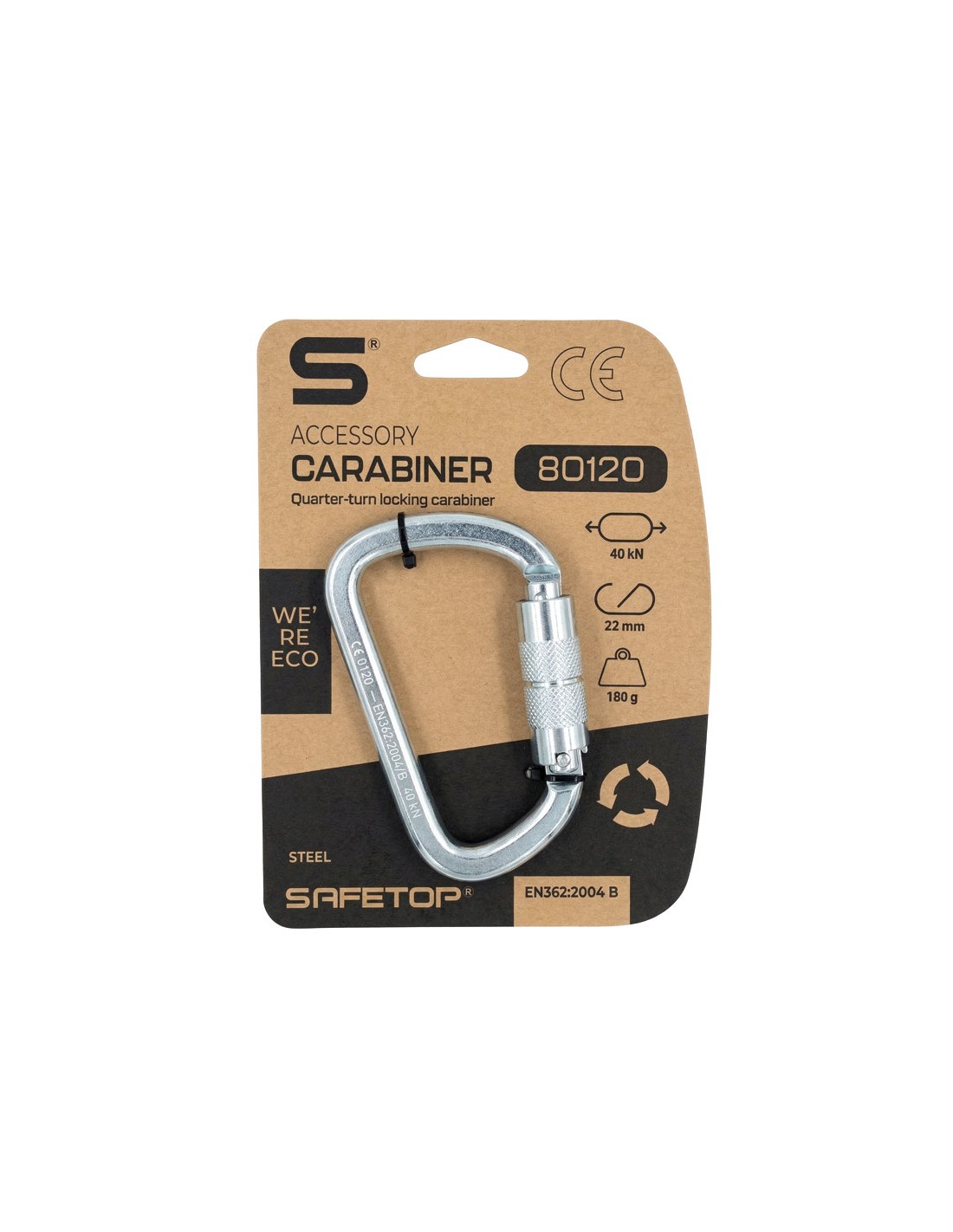

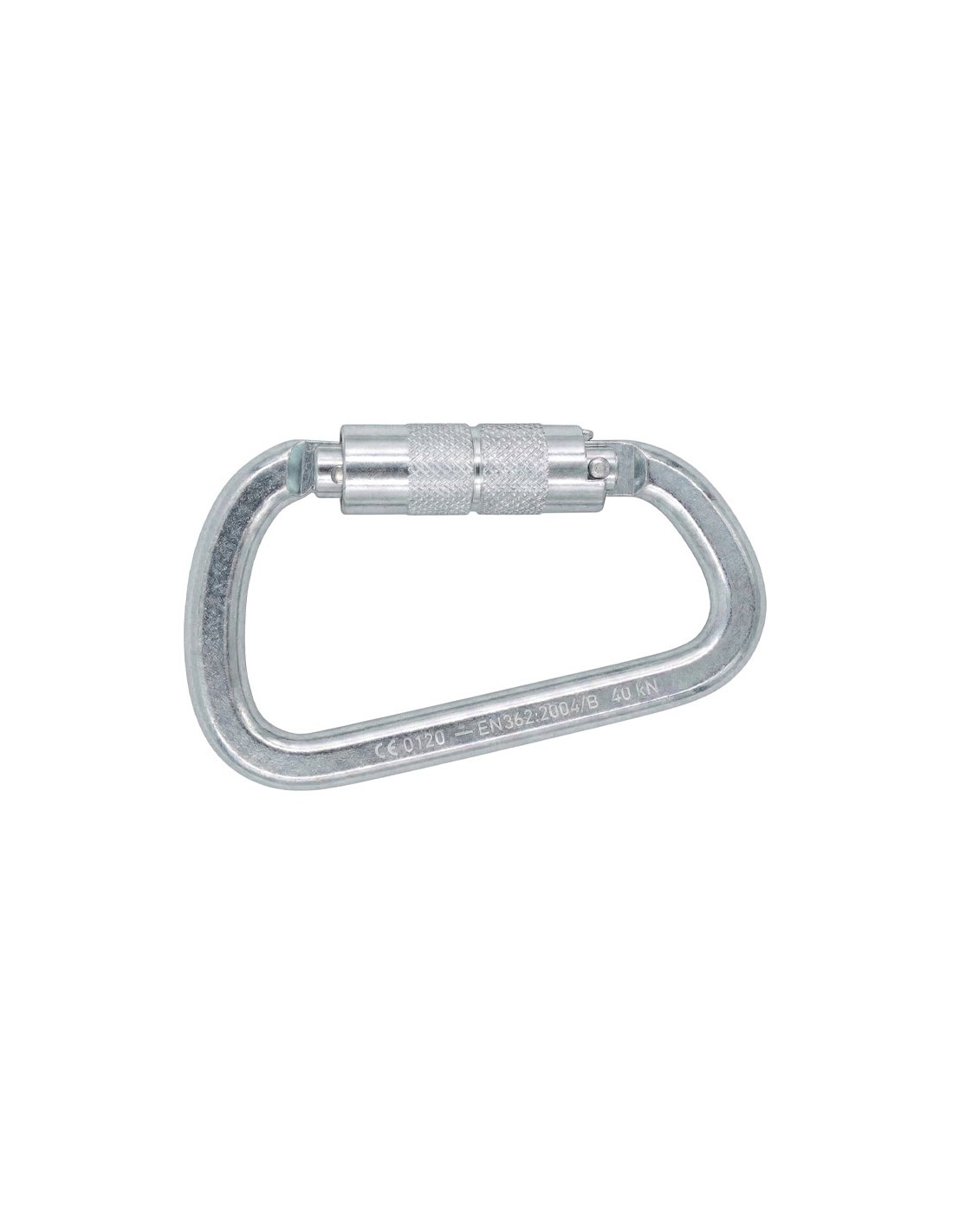

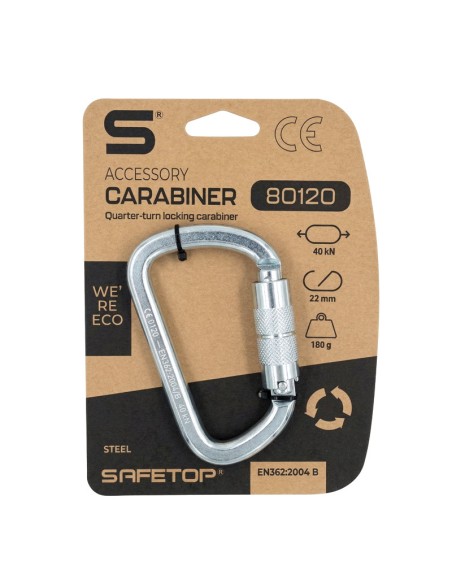

SCREW Lock CARABINER, 1/4 turn steel 22 mm opening
SCREW Lock CARABINER, 1/4 turn steel 22 mm opening

SCREW Lock CARABINER, 1/4 turn steel 22 mm opening

80120
Lock with confidence in 1/4 turn.


· Manual 1/4 turn carabiner in a single move, with screw locking mechanism, self-closing.
· The nut has a diamond pattern to facilitate turning.
· Galvanised steel body with silver finish.
· Opening: 22 mm.
· Static resistance: 40 Kn major axis.
· APPLICATIONS Basic connection element class B, screw closure, intended to be used as a component.

Quick and secure connection in 1/4 turn with 22 mm opening for greater versatility.
Galvanised steel and 40 kN of strength for superior reliability in demanding environments.


The SCREW Lock CARABINER, 1/4 turn, is designed to provide a secure anchor with intuitive handling. Its diamond-pattern nut enhances grip and ergonomics, even with gloves, allowing for firm and precise locking. Made from galvanised steel with a silver finish, it ensures high durability and resistance to corrosion, supporting up to 40 kN on the major axis.

Ideal for professionals seeking quality and value for money, this class B connector easily integrates as a component in height work, tie-off, and rescue systems. Recommended for anchor points, slings, pulleys, and temporary lifelines. Always check the screw closure and perform periodic inspections to maintain system safety.

Use cases:
- Connection of slings and anchor points in height work
- Assembly of temporary lifelines and securing of pulleys or descenders
- Rescue operations and rope access requiring screw closure
Packaging unit
EN362
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
