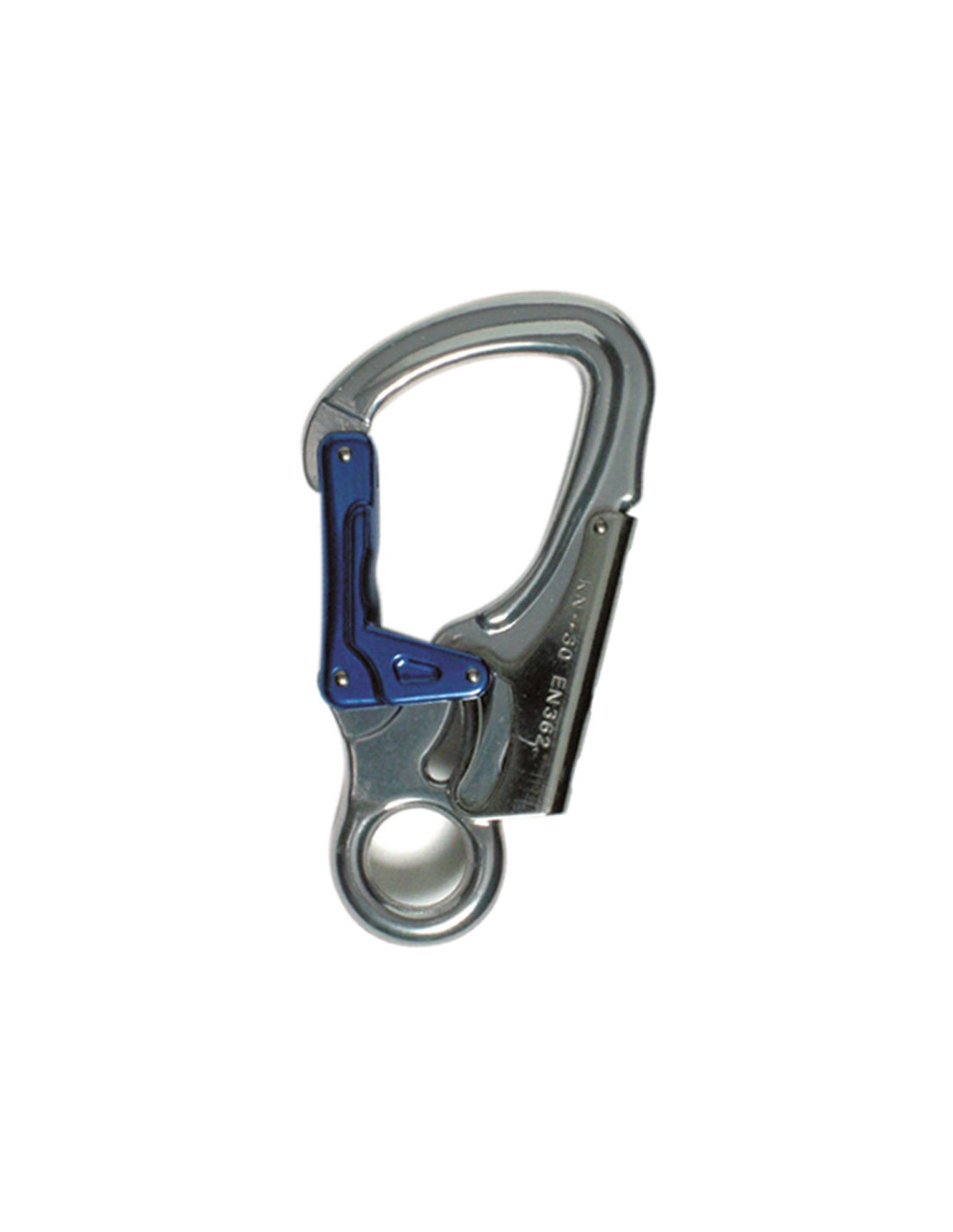

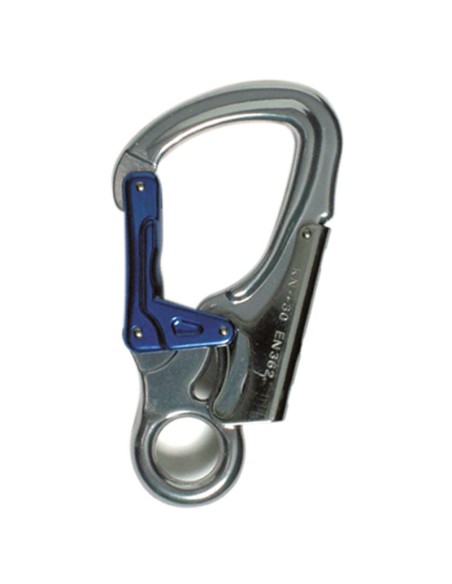

AUTOMATIC CARABINER, aluminium gate opening 21 mm, 22KN
AUTOMATIC CARABINER, aluminium gate opening 21 mm, 22KN

AUTOMATIC CARABINER, aluminium gate opening 21 mm, 22KN

80117
Instant locking, constant safety.


· Automatic aluminium carabiner with quick opening for repeated connections.
· Automatic locking latch with a 22 mm opening in a single manoeuvre.
· Maximum resistance: 22 kN.
· APPLICATIONS Connection element in a fall protection system.
· Class T connectors are auto-locking, designed as an element of a subsystem, so that the load is applied in a predetermined direction.

Automatic aluminium carabiner that speeds up repeated connections with closure in a single manoeuvre.
Its resistance of 22 kN and lightweight design provide safety and efficiency in work at height.


Optimise your tasks at height with an automatic carabiner designed to connect and secure in seconds. Its automatic locking in a single manoeuvre reduces human error and speeds up workflow, while the aluminium body combines lightness and high resistance (22 kN) for reliable performance throughout the day. The profile and gate facilitate handling with gloves, making it ideal for repeated connections in demanding environments.
Usage suggestions: visually check the closure after each connection, keep contact points clean and use the connector within its load axis. Combine it with certified harness and lifeline for a complete fall protection system.
Instant locking, constant safety.

Use cases:
- Connection to lifelines and anchor points in work at height
- Assembly and movement on scaffolding, structures, and roofs
- Industrial maintenance operations and rope access
Packaging unit
EN362
OK

Is the inspection of fall-arrest PPE mandatory?

All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.

Inspection frequency: Once per year.



Who is authorized to inspect the equipment?

Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.

  • Safetop-certified distributors
    Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports.
  • Safetop inspection technical service
    We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner.
  • Safetop-authorized personnel
    Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.


Safetop Monitor

Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
