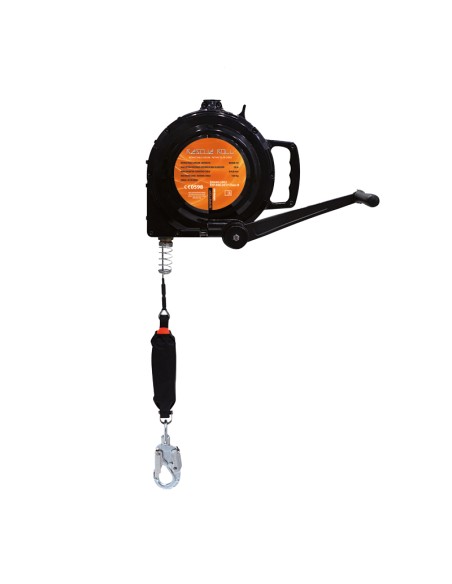

RESCUE-ROLL, 35 m cable winch for tripods
· Retractable cable with handle.
· With rescue lifting device.
· The equipment performs two functions:
· Retractable fall arrest device
· And device with rescue function.
· Galvanised steel cable of 25 m or 35 m.
· Cable diameter: 4.8 mm.
· Maximum working load: 150 Kg.
· Minimum working load: 50 Kg.
· With spring system.
· Upper swivel ring.
· Lower swivel carabiner.
· To be attached to tripods.
The RESCUE-ROLL integrates fall protection and rescue with lifting by crank in a single device, optimising time and reducing equipment in the field. Its 35 m galvanised steel cable and 4.8 mm diameter offer resistance and durability, while the upper ring and lower swivel carabiner minimise twists and improve manoeuvrability under load. With a spring system for smooth return and total compatibility with tripods, it is the reliable solution for working at height and in confined spaces.
Usage suggestions: install on certified tripods, verify the working load (50150 kg) before each operation and keep the cable free of sharp edges. Ideal for industrial rescue teams, plant maintenance, sewage treatment, and sewer work.
Rescue and safety in one turn.
Use cases:
- Confined space rescue operations with a tripod (wells, sewers, tanks).
- Maintenance work at height where a fall arrest system and lifting capability are required.
- Interventions in industrial plants and treatment works with the need for controlled evacuation.
- Packaging unit
- EN1496
- OK
Is the inspection of fall-arrest PPE mandatory?
All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.
Inspection frequency: Once per year.
Who is authorized to inspect the equipment?
Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.
- Safetop-certified distributors
Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports. - Safetop inspection technical service
We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner. - Safetop-authorized personnel
Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.
