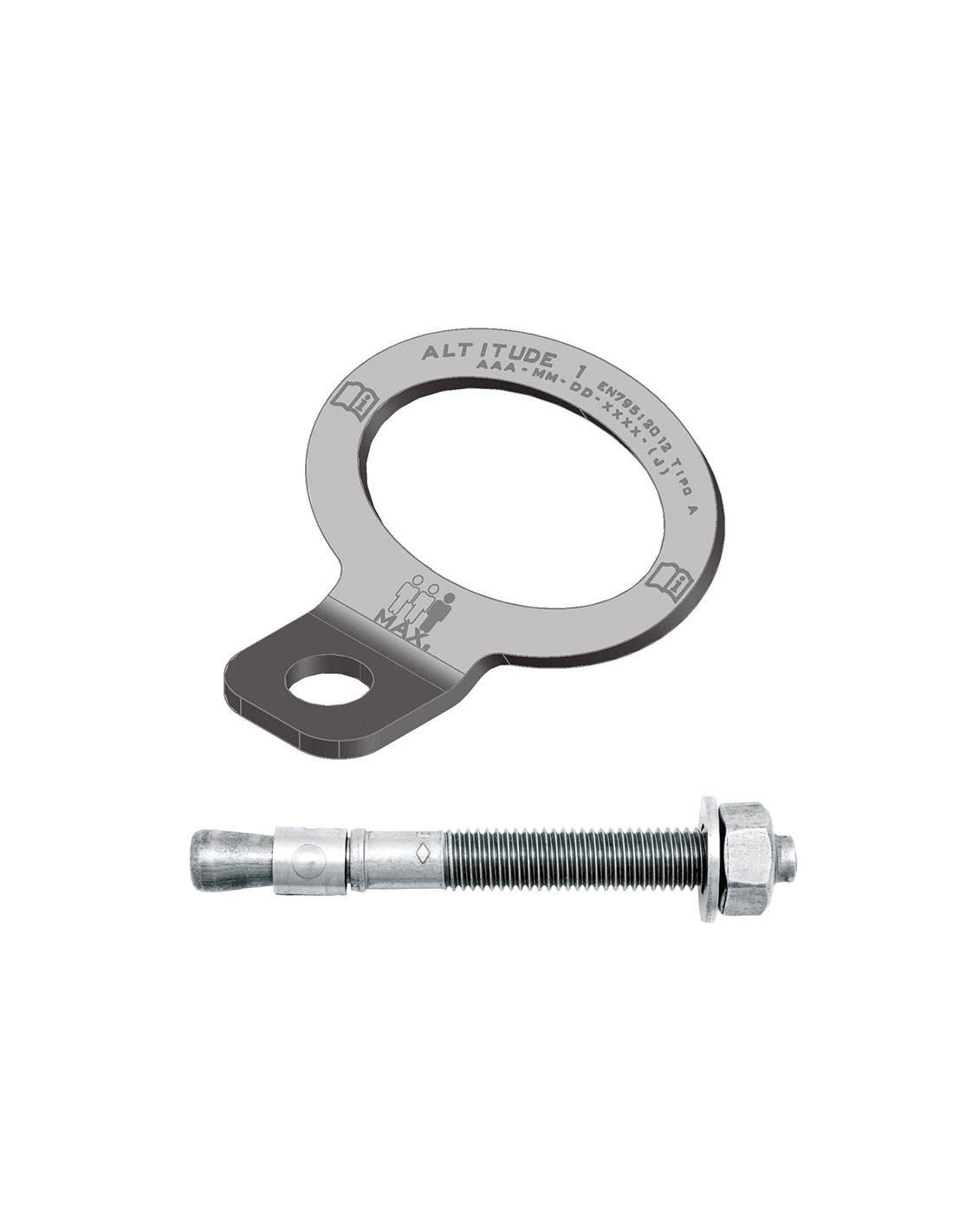

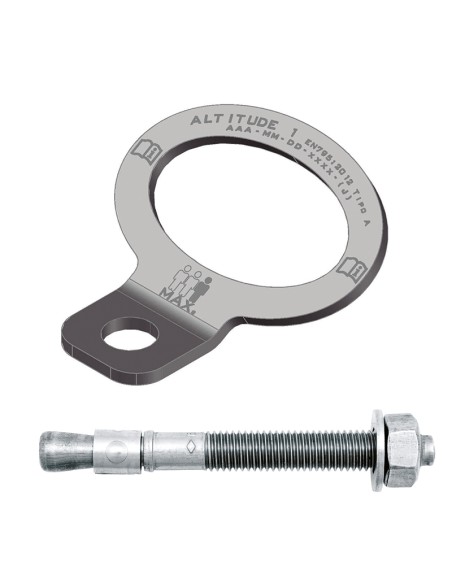

ANCHOR PLATE 70 mm for 3 operators with 16 mm bolt
· Anchor device designed to be fixed by a structural anchor on vertical, horizontal, or inclined surfaces, such as walls, ceilings, roofs, or any other structural element.
· Includes bolt.
· Anchorage point for 3 operators 16 mm.
· 70 mm opening.
Notable for its capacity for 3 operators and 70 mm opening with 16 mm bolt included.
The ANCHOR PLATE 70 mm for 3 operators with 16 mm bolt provides a reliable anchorage point for work at height on vertical, horizontal, or inclined surfaces. Its robust design and wide 70 mm opening facilitate installation on common structural elements, with excellent value for money. Includes a 16 mm bolt for direct and secure mounting, and supports up to three operators, optimising resources and time on site. Ideal for roofs, facades, and access structures, it is a versatile solution for maintenance, assembly, and safety operations. Usage suggestions: select the appropriate structural element, install according to current regulations, and plan the fall arrest system (fixed point or lifeline) according to the work.
Use cases:
- Maintenance and cleaning on the roofs and roofs of industrial buildings and commercial buildings.
- Facade work, repair, and installation of panels or carpentry on vertical surfaces.
- Assembly and review of installations (HVAC, electrical, photovoltaic) on roofs and walls.
- Packaging unit
- CEN/TS 16415
- OK
- EN795A
- OK
Is the inspection of fall-arrest PPE mandatory?
All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.
Inspection frequency: Once per year.
Who is authorized to inspect the equipment?
Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.
- Safetop-certified distributors
Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports. - Safetop inspection technical service
We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner. - Safetop-authorized personnel
Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.
Safetop Monitor
Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
