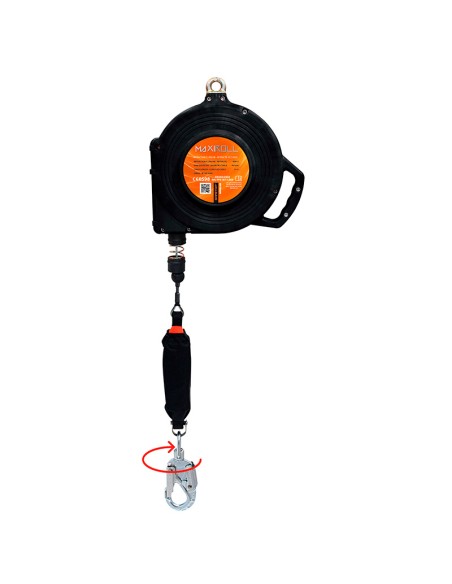

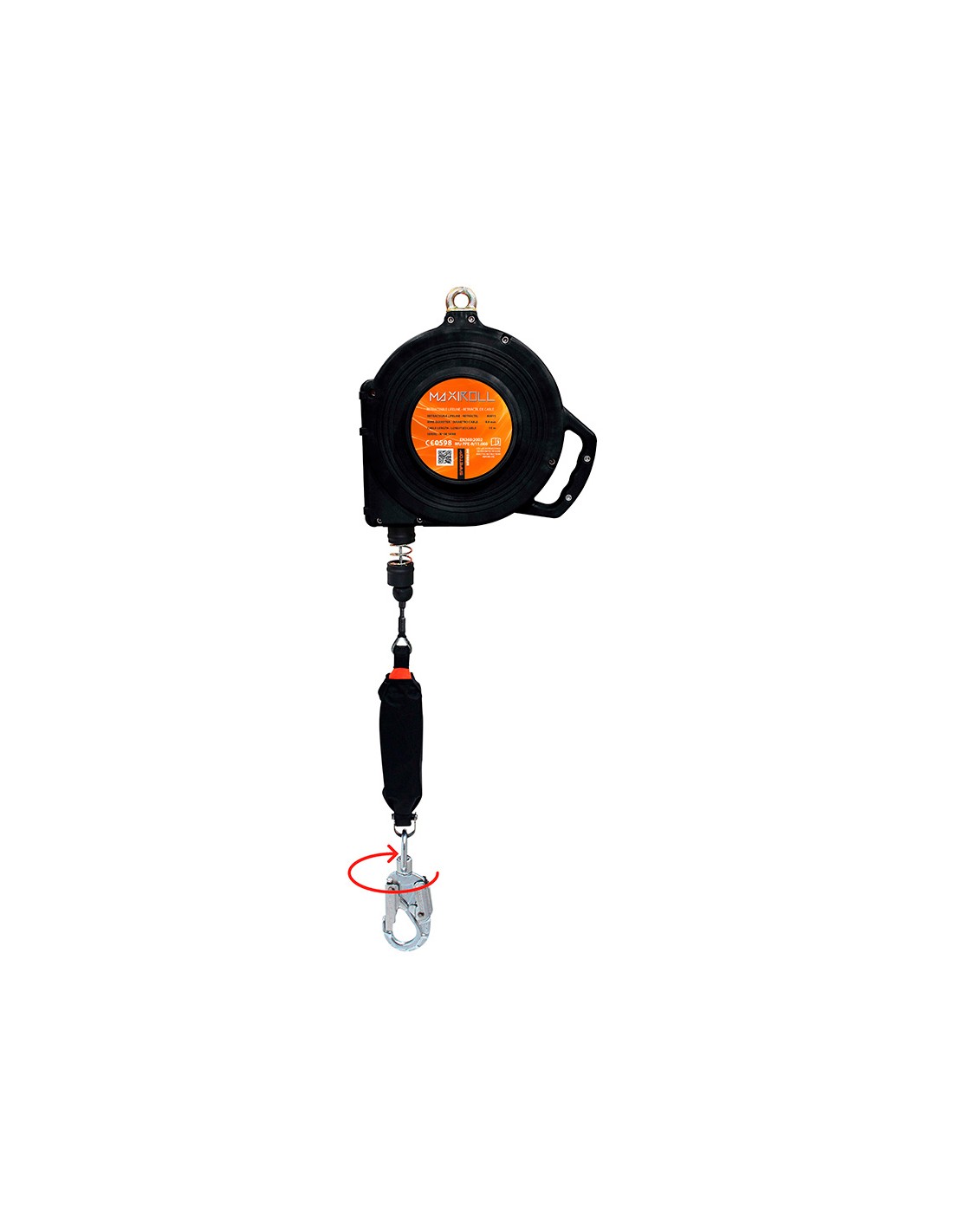

MAXIROLL, Retractable 10m cable for Horizontal and Vertical use 120K
· Retractable cable lifeline.
· Galvanised steel.
· Available in lengths of 6, 10, 15, 20, 25 and 35 m.
· Tested for vertical and horizontal use.
· The cable has a braided diameter of 4.8 mm.
· Loop finish.
· Maximum working load: 120 Kg.
· Connected to a quick-release carabiner.
· Oval steel support.
· Hole of 30 mm x 18 mm.
· Its casing is 21 cm in diameter thermoplastic.
· Reduced weight and dimensions.
· Its lightness reduces operator fatigue.
· Easy to transport.
· The lower carabiner is with a rotating head and floating ring.
· This prevents the cable from twisting if the operator turns.
· Cable twists are avoided, prolonging its useful life.
· Includes handle for easy transport and placement.
Lightweight design with thermoplastic casing and rotating carabiner to reduce fatigue and prevent cable twists.
MAXIROLL offers 10 metres of effective reach with 4.8 mm braided galvanised steel cable and compact thermoplastic casing (Ø 21 cm), achieving the optimal combination of strength, durability and lightness. Certified for vertical and horizontal work and with a capacity of 120 kg, it maintains a secure connection during continuous movement, avoiding unnecessary stops. Its lower carabiner with rotating head minimises twists, prolonging the equipment's lifespan and improving the user experience. The integrated handle and compact size facilitate transport and installation, providing ergonomics and productivity in every intervention.
Use suggestions: use certified anchors and check the equipment before each working day; in horizontal use, control the angle to reduce pendulum effect; keep the work area clear and plan the rescue according to regulations.
Total mobility, twist-free safety.
Use cases:
- Assembly and maintenance on roofs, warehouses and metal structures with horizontal and vertical movements.
- Work on towers, scaffolding and wind farms requiring a 10 m retractable line and 120 kg capacity.
- Industrial maintenance and civil works operations with frequent changes of direction and risk of cable twisting.
- Packaging unit
- Max load
- EN360
- OK
Is the inspection of fall-arrest PPE mandatory?
All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.
Inspection frequency: Once per year.
Who is authorized to inspect the equipment?
Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.
- Safetop-certified distributors
Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports. - Safetop inspection technical service
We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner. - Safetop-authorized personnel
Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.
