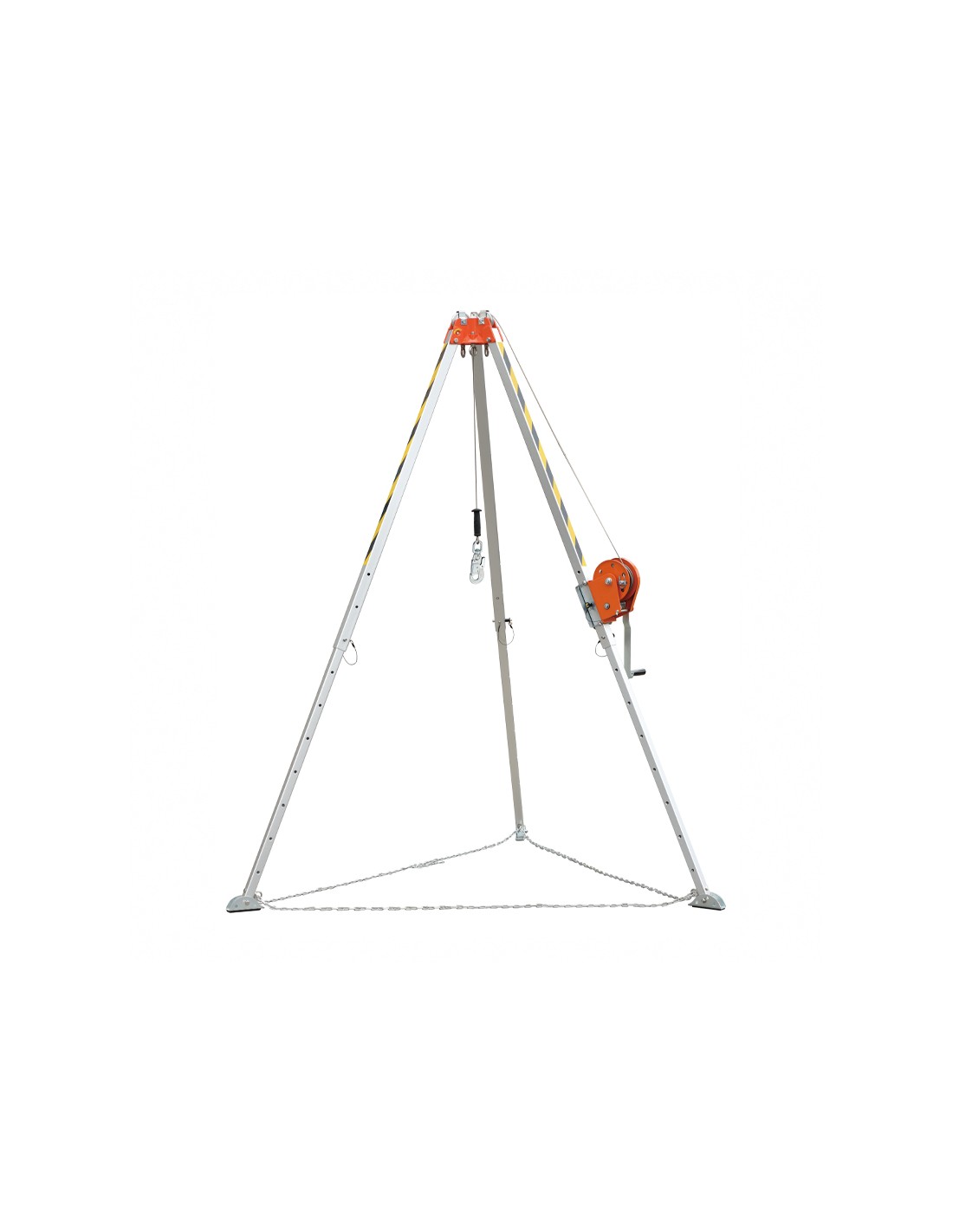

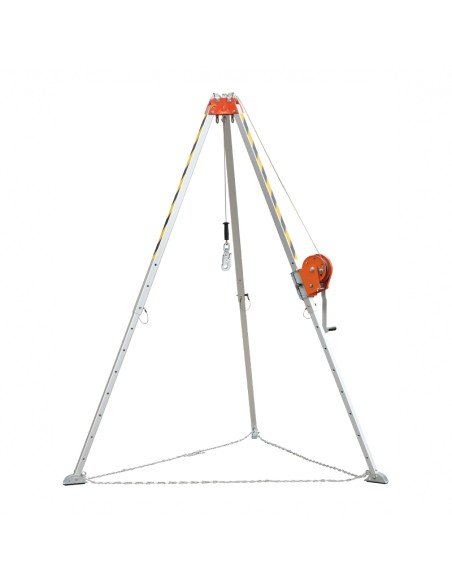

SERIES AS, Confined space Kit with Tripod 750 kg + Rescue 140 kg and 15 m
80375-AS-15
Elevate safety, lower risk.
· Mobile tripod-type anchorage system for confined space work, rescue, and personal fall arrest systems.
· Includes winch, available in 15, 25, and 35 m (1 user, maximum load 140 Kg).
· Suitable for use with a manual winch for lifting/lowering people in rescue operations (available in 15, 25, and 35 m).
· Adjustable anchor point height: 1.5 m 2.5 m.
· Working height: 1.37 m 2.32 m.
· Tripod opening: 1.39 m 2.17 m.
· Tripod weight: 21.05 Kg.
· 3 integrated top pulleys.
· Lower stabilising chain.
· 350 mm foldable handle.
· Gear ratio 5:1.
· Rubber-reinforced non-slip feet.
· Materials: Tripod head: aluminium alloy, casting + paint; Anchor bolts: stainless steel; Upper sections: anodised aluminium 46.5 × 46.5 mm; Lower sections: anodised aluminium 39 × 39 mm; Winch cable: stainless steel Ø 5 mm; Carabiner with drop indicator: alloy steel; Feet: steel with non-slip rubber; Chains: structural steel.
· Mobile tripod-type anchorage system for confined space work, rescue, and personal fall arrest systems.
· Includes winch, available in 15, 25, and 35 m (1 user, maximum load 140 Kg).
· Suitable for use with a manual winch for lifting/lowering people in rescue operations (available in 15, 25, and 35 m).
· Adjustable anchor point height: 1.5 m 2.5 m.
· Working height: 1.37 m 2.32 m.
· Tripod opening: 1.39 m 2.17 m.
· Tripod weight: 21.05 Kg.
· 3 integrated top pulleys.
· Lower stabilising chain.
· 350 mm foldable handle.
· Gear ratio 5:1.
· Rubber-reinforced non-slip feet.
· Materials: Tripod head: aluminium alloy, casting + paint; Anchor bolts: stainless steel; Upper sections: anodised aluminium 46.5 × 46.5 mm; Lower sections: anodised aluminium 39 × 39 mm; Winch cable: stainless steel Ø 5 mm; Carabiner with drop indicator: alloy steel; Feet: steel with non-slip rubber; Chains: structural steel.
Complete confined space access and rescue solution with a manual winch and a 5:1 ratio for controlled lift/lower.
Distinguished by its adjustable anchoring height (1.52.5 m), 3 integrated pulleys, and construction in aluminium and stainless steel with non-slip feet.
The SERIES AS, Confined Space Kit with Tripod 750 kg + Rescue 140 kg and 15 m combines smart design, lifting technology, and material quality to offer a reliable mobile anchorage point in confined spaces. The manual winch with a 5:1 ratio and a 350 mm foldable handle allows for precise ascent and descent operations for one user, while the 3 top pulleys optimise the guide of the Ø 5 mm stainless steel cable.
The adjustable height of the anchorage point (1.52.5 m), the adaptable opening (1.392.17 m), and the rubber-reinforced feet, along with the stabilising chain, provide stability and ergonomics in assembly and use. Made from an aluminium alloy and stainless steel, it maintains a contained weight (21.05 kg) that facilitates transport and deployment without sacrificing robustness.
Usage suggestions: adjust the anchor height according to the required access; select the appropriate winch length (15, 25 or 35 m); confirm the stabilising chain's anchor and the correct position of the non-slip feet; verify the condition of the Ø 5 mm cable and the carabiner with drop indicator before each operation.
Elevate safety, lower risk.
Use Cases:
- Access and lift/lower in confined spaces: manholes, tanks, wells and silos.
- Rescue and evacuation operations with speed control via manual winch.
- Industrial maintenance works with personal fall arrest systems.
Distinguished by its adjustable anchoring height (1.52.5 m), 3 integrated pulleys, and construction in aluminium and stainless steel with non-slip feet.
The SERIES AS, Confined Space Kit with Tripod 750 kg + Rescue 140 kg and 15 m combines smart design, lifting technology, and material quality to offer a reliable mobile anchorage point in confined spaces. The manual winch with a 5:1 ratio and a 350 mm foldable handle allows for precise ascent and descent operations for one user, while the 3 top pulleys optimise the guide of the Ø 5 mm stainless steel cable.
The adjustable height of the anchorage point (1.52.5 m), the adaptable opening (1.392.17 m), and the rubber-reinforced feet, along with the stabilising chain, provide stability and ergonomics in assembly and use. Made from an aluminium alloy and stainless steel, it maintains a contained weight (21.05 kg) that facilitates transport and deployment without sacrificing robustness.
Usage suggestions: adjust the anchor height according to the required access; select the appropriate winch length (15, 25 or 35 m); confirm the stabilising chain's anchor and the correct position of the non-slip feet; verify the condition of the Ø 5 mm cable and the carabiner with drop indicator before each operation.
Elevate safety, lower risk.
Use Cases:
- Access and lift/lower in confined spaces: manholes, tanks, wells and silos.
- Rescue and evacuation operations with speed control via manual winch.
- Industrial maintenance works with personal fall arrest systems.
- EN795B
- OK
- CEN/TS 16415
- OK
- EN1496
- OK
- AS SERIES
- OK
Is the inspection of fall-arrest PPE mandatory?
All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.
Inspection frequency: Once per year.
Who is authorized to inspect the equipment?
Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.
- Safetop-certified distributors
Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports. - Safetop inspection technical service
We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner. - Safetop-authorized personnel
Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.
Safetop Monitor
Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
