AS SERIES, Confined space kit w/tripod 750 kg+Rescue 140 kg and 35 m
80375-AS-35
Safety that rises with you.

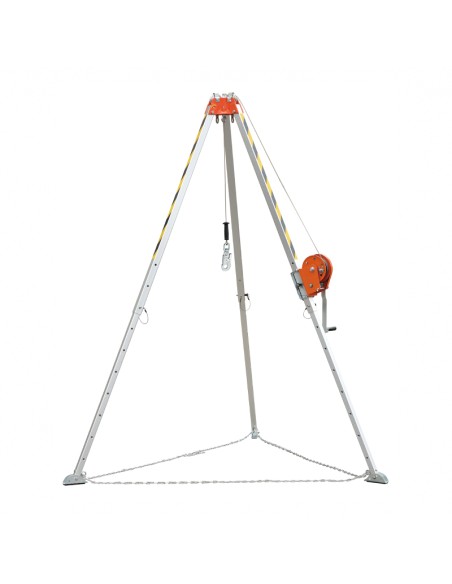

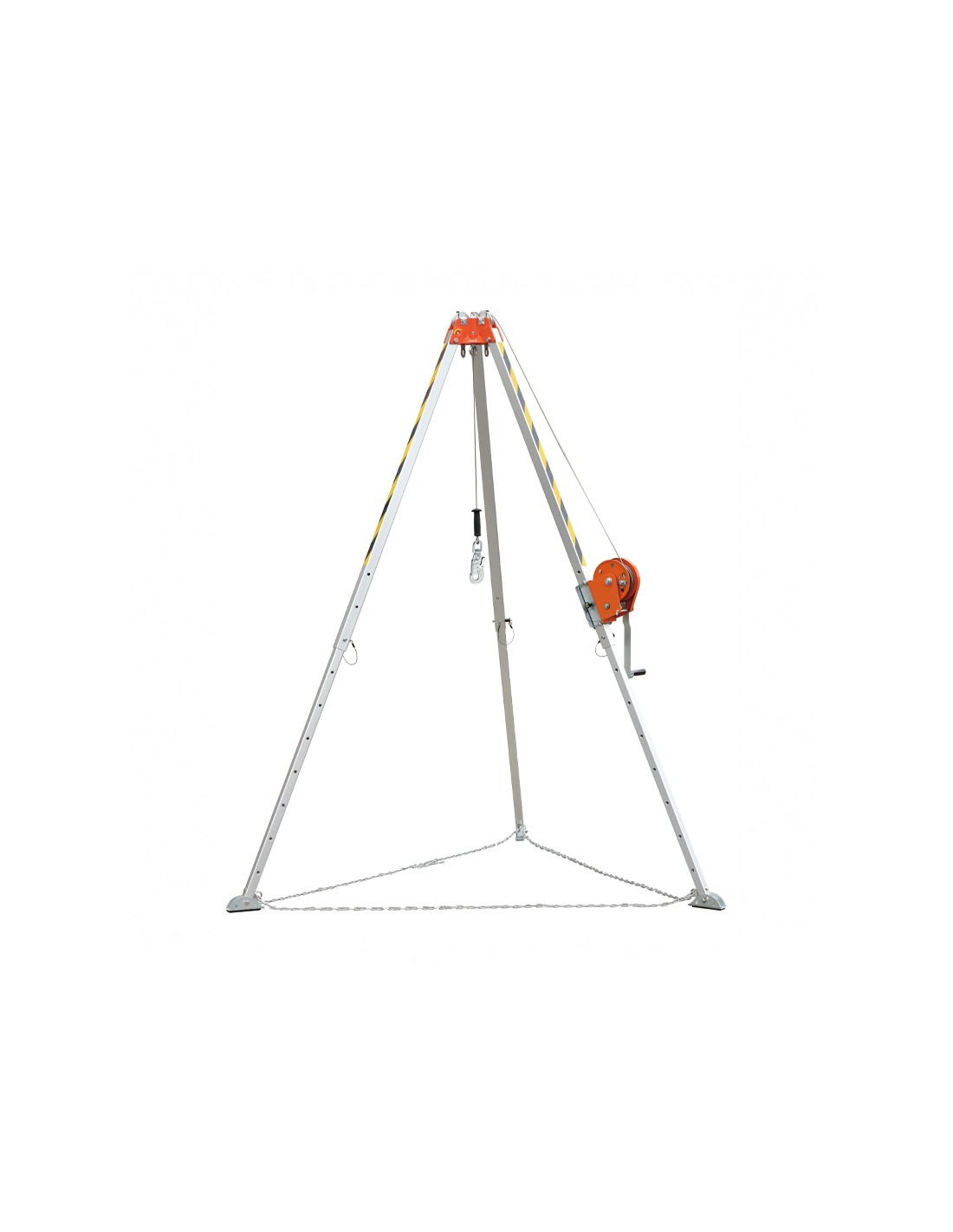

· Mobile anchorage system tripod type for confined space work, rescue and personal fall arrest systems.
· Includes winch, available in 15, 25 and 35 m (1 user, maximum load 140 Kg).
· Suitable for use with manual winch for hoisting/lowering people in rescue operations (available in 15, 25 and 35 m).
· Adjustable height of the anchor point: 1.5 m 2.5 m.
· Working height: 1.37 m 2.32 m.
· Tripod opening: 1.39 m 2.17 m.
· Tripod weight: 21.05 Kg.
· 3 integrated upper pulleys.
· Lower stabilising chain.
· 350 mm folding handle.
· 5:1 gear ratio.
· Feet reinforced with non-slip rubber
· Materials: Tripod head: aluminium alloy, casting + painting; Anchor bolts: stainless steel; Upper sections: anodised aluminium 46.5 × 46.5 mm; Lower sections: anodised aluminium 39 × 39 mm; Winch cable: stainless steel Ø 5 mm; Carabiner with fall indicator: alloy steel; Feet: steel with non-slip rubber; Chains: structural steel.
· Mobile anchorage system tripod type for confined space work, rescue and personal fall arrest systems.
· Includes winch, available in 15, 25 and 35 m (1 user, maximum load 140 Kg).
· Suitable for use with manual winch for hoisting/lowering people in rescue operations (available in 15, 25 and 35 m).
· Adjustable height of the anchor point: 1.5 m 2.5 m.
· Working height: 1.37 m 2.32 m.
· Tripod opening: 1.39 m 2.17 m.
· Tripod weight: 21.05 Kg.
· 3 integrated upper pulleys.
· Lower stabilising chain.
· 350 mm folding handle.
· 5:1 gear ratio.
· Feet reinforced with non-slip rubber
· Materials: Tripod head: aluminium alloy, casting + painting; Anchor bolts: stainless steel; Upper sections: anodised aluminium 46.5 × 46.5 mm; Lower sections: anodised aluminium 39 × 39 mm; Winch cable: stainless steel Ø 5 mm; Carabiner with fall indicator: alloy steel; Feet: steel with non-slip rubber; Chains: structural steel.
Mobile anchor tripod for access and rescue in confined spaces, with manual winch up to 35 m and capacity for 1 user (140 kg).
Its adjustable design, 3 integrated pulleys and non-slip feet maximise safety, ergonomics and efficiency in critical operations.
The AS SERIES is designed for professionals who require safe and controlled access in confined spaces and rescue manoeuvres. Its anodised aluminium and stainless steel architecture ensures high durability and precision, while the 5:1 gear ratio and 350 mm folding handle facilitate smooth hoisting/lowering with less effort. The adjustable height of the anchor point and the working range allow the equipment to be adapted to the environment, and the feet with non-slip rubber plus the stabilising chain provide immediate firmness on demanding floors. The 3 integrated upper pulleys optimise the guidance of the 5 mm Ø stainless steel cable, reducing friction and improving manoeuvrability.
Usage suggestions: select the appropriate cable length for the well or tank, check the stability of the tripod and the tension of the chain, use the carabiner with fall indicator and perform pre-shift inspections. Ideal for maintenance crews, rescue contractors and emergency services who value robust design, efficient technology and consistent quality.
Use cases:
- Rescue and hoisting/lowering of people in sewers, wells, tanks and service galleries.
- Industrial maintenance and inspection in power, chemical and food plants with fall risk.
- Sanitation operations and civil works where mobile anchorage and controlled descent are required.
Its adjustable design, 3 integrated pulleys and non-slip feet maximise safety, ergonomics and efficiency in critical operations.
The AS SERIES is designed for professionals who require safe and controlled access in confined spaces and rescue manoeuvres. Its anodised aluminium and stainless steel architecture ensures high durability and precision, while the 5:1 gear ratio and 350 mm folding handle facilitate smooth hoisting/lowering with less effort. The adjustable height of the anchor point and the working range allow the equipment to be adapted to the environment, and the feet with non-slip rubber plus the stabilising chain provide immediate firmness on demanding floors. The 3 integrated upper pulleys optimise the guidance of the 5 mm Ø stainless steel cable, reducing friction and improving manoeuvrability.
Usage suggestions: select the appropriate cable length for the well or tank, check the stability of the tripod and the tension of the chain, use the carabiner with fall indicator and perform pre-shift inspections. Ideal for maintenance crews, rescue contractors and emergency services who value robust design, efficient technology and consistent quality.
Use cases:
- Rescue and hoisting/lowering of people in sewers, wells, tanks and service galleries.
- Industrial maintenance and inspection in power, chemical and food plants with fall risk.
- Sanitation operations and civil works where mobile anchorage and controlled descent are required.
- EN795B
- OK
- CEN/TS 16415
- OK
- EN1496
- OK
- AS SERIES
- OK
Is the inspection of fall-arrest PPE mandatory?
All fall-arrest equipment must undergo a mandatory annual inspection starting from the date of its first use, in accordance with the UNE EN 365:2005 standard. This inspection ensures that the equipment maintains its safety conditions. The user must record the date of first use in the corresponding inspection sheet.
Inspection frequency: Once per year.
Who is authorized to inspect the equipment?
Inspections of Safetop fall-arrest equipment can only be carried out by Safetop or by a Safetop-authorized person.
- Safetop-certified distributors
Only distributors trained and certified by Safetop are authorized to perform inspections of our PPE. This specialized training enables them to identify defects, monitor material condition, and issue valid inspection reports. - Safetop inspection technical service
We offer our own technical inspection service for fall-arrest equipment, exclusively for distributors. End users should not send equipment directly; instead, they must manage it through their supply partner. - Safetop-authorized personnel
Safetop provides technical inspection courses for suppliers, enabling them to become authorized inspection centers.
Safetop Monitor
Manage your equipment, inspections, and expiration dates with our Safetop Monitor application. Centralize technical documentation, inspection notifications, and PPE tracking all in one place.
